Orthopedic Spring Technology

Take the guesswork out of building dynamic carbon braces with PDETM— A modular composite AFO spring system, specifically designed for weight offloading.

fabtech-PDE-featured_orthopedic
PDE-Springs-3-Angled-WebLarge-rgb

The PDE™ orthopedic spring system is a modular AFO spring for composite brace designs. This simple and reliable ‘plug and play’ system provides the ability to adjust alignment in both the footplate and upper cuff after the brace has been fabricated. Dynamically adjust external, internal, plantar & dorsiflexion alignments as well as easily change spring stiffness and length.

  • 9 Flex Spring Choices
  • Available In 3 Lengths: 200mm, 250mm, & 300mm
  • Modular Design
  • Low Profile
  • Adjustable Alignment
  • Designed For Weight Offloading
  • Clinically Proven
  • Made in the USA

INTERCHANGABLE DESIGN MAKES MORE POSSIBLE What PDE™ Technology Delivers To Patients:

PDE-features-icons-01

Walk with greater fluency and stability

PDE-features-icons-02

Participate in higher intensity activities such as running

PDE-features-icons-03

Swap the PDE spring stiffness and rebound to alter walking mechanics

PDE-features-icons-04

Swap the PDE spring stiffness and rebound depending on the activity

PDE-features-icons-05

Adjust the ankle alignment of the device depending on the shoe heel-height

PDE-features-icons-06

Change the ankle alignment of the device depending on the intended activity

PDE-features-icons-07

Change the fit of the upper cuff on demand, anywhere, anytime

BUILD YOUR OWN BRACE We Made it Simple!

Fabricating a brace using Fabtech’s PDE spring technology involves industry-standard methods used for composite brace fabrication. If you are versed in fabricating laminated prosthetics or orthotic devices, then you can easily make a composite brace—built With PDE springs.

Play Video

PDE Reaktiv Brace Casting Training

Play Video

PDE Brace Fabrication Training

fabtech_kb230215_588

CFAB Services Don’t want to make your own brace?

As the inventor of PDE springs and world leader in this technology, Fabtech’s CFAB team offers you and your team the competence to do it right.

Some providers may only see one patient a year utilizing this technology, others more. Fabtech provides thousands of these braces a year and our knowledge and expertise are unmatched.

CHOOSING THE RIGHT SPRING Guidelines for Choosing PDE Spring Lengths

fabtech-PDE-brace-featured_Orthopedic-3-sizes-02

Because every patient has unique needs there are no specific weight limitations that aid in spring choice. Choose the category based on your patient assessment. As a general rule you want to use the longest spring system your cuff design or patient height will allow. In an Orthopedic case where you are trying to control and limit motion to control pain, we recommend using a higher category spring in the beginning.

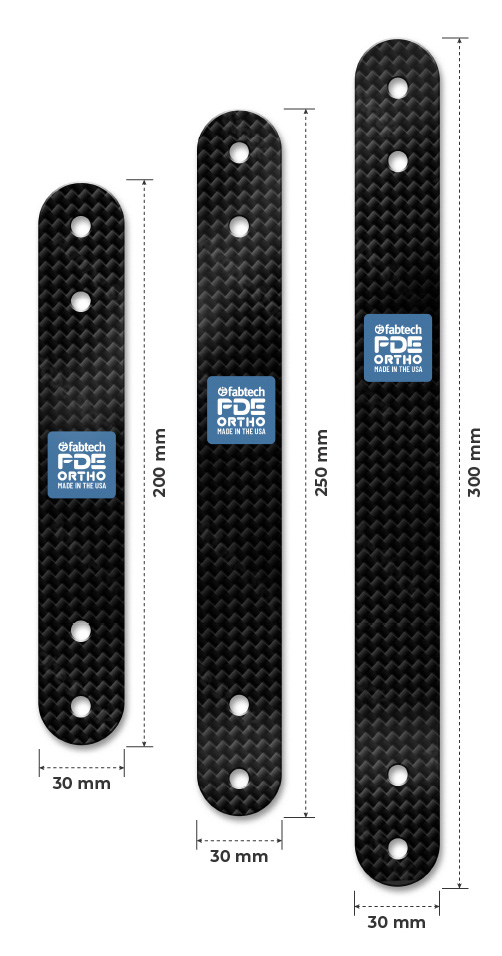

200mm length springs

A good choice for shorter patients or when maximum PTB unloading is desired, as the largest area cuff can be utilized.

250mm length springs

Fits the averaged sized population well and can be used with the PTB cuff design and anterior cuff design.

300mm length springs

Generally used with tall patients, or when wanting to provide a small anterior cuff design as common with the IDEO designs.

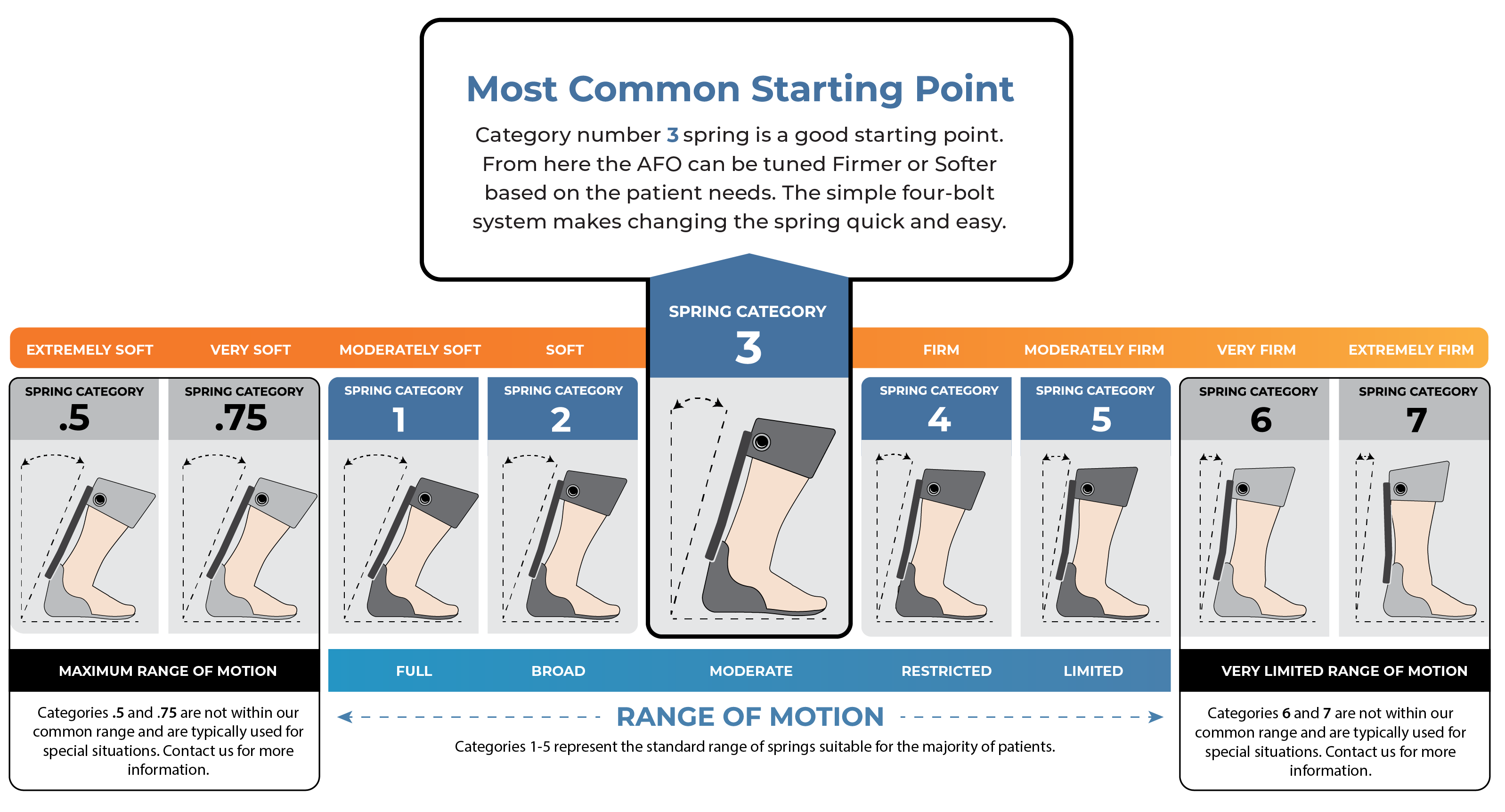

PDE-spring-selection-chart_orthopedic

SPECIAL NOTE:

Category number three (3) spring are the most common selection and a great to start your evaluation. From here, up/down spring category is based on what works best for the patient. Our simple four bolt system makes changing the spring quick and easy.

Recommendation: PDE Fitting Kit

Get it right. Get the Fit Kit.

When building a custom device, it’s always nice to have options. That’s why we created the PDE Fitting Kit.

Try different categories of springs on your patient until you find the perfect fit!

Then just replace the the parts that get used so you always have a full set of springs & hardware.

Fit Kit Contents: 5 PDE Springs (One each PDE spring category 1 through 5), mounting anchor kit, alignment shim kit, adhesive dispenser and adhesive.

fabtech-PDE-fit-kit_orthopedic

PDE RevoFit2 Closure, Anchor & Shim Kits

Part # Description
PAK-1Anchor Fabrication Kit (anchors, hardware, tooling)
PAK-2HDHeavy Duty Anchor Fabrication Kit (anchors, hardware, tooling)
PBOA3RevoFit™ Lamination Kit w/ Click™ Reel System
PAS34 Piece shim set for PDE post alignment
PASFFlexion alignment shims (2ea)
PASRRotational alignment shims (2ea)
PASHComplete Shim Hardware

Carbon Tape / Epoxy Resin / Casting Tool

Part # Description Size
CT6-1FR12K Carbon Fiber Tape - Unfinished Edge6" x 10 Feet
CT6-5FR12K Carbon Fiber Tape - Unfinished Edge6" x 50 Feet
RES3.0Advanced Epoxy Resin Kits3 Liters
CT100Reaktiv / PDE Casting Tool8" x 18"

Diagnostic Fitting Kits

Part # Description Size
FK200PDE Fit Kit 200mm5 PDE Springs (1 - 5 category) Anchor kit, RevoFit™ Lamination Kit w/ Click™ Reel System, Shim set, Adhesive dispenser and adhesive
FK250PDE Fit Kit 250mm5 PDE Springs (1 - 5 category) Anchor kit, RevoFit™ Lamination Kit w/ Click™ Reel System, Shim set, Adhesive dispenser and adhesive
FK300PDE Fit Kit 300mm5 PDE Springs (1 - 5 category) Anchor kit, RevoFit™ Lamination Kit w/ Click™ Reel System, Shim set, Adhesive dispenser and adhesive

Anchor Kit Compatibility Chart

Wondering what anchor kit is right for you?

Use our guide to help you select the right anchor kit for your PDE spring.

fabtech-PDE-featured-shoe

CHOOSING THE RIGHT SHOE Basic Guidelines for Choosing Shoes

Ideal shoe: 3/8” Soft cushioned heel, Soft sticky tread, Minimum 1⁄2” toe rocker, Wide toe box

  • Your patient will need to buy new shoes to fit over the Brace. DO NOT use old, worn-out shoes.
  • We find a shoe size larger and wider works best.
  • Ideally have your patient buy shoes after they receive the brace.
  • Look for shoes with laces that reach down as far to the toes as possible and shoes that are deep and have adequate width to accommodate the brace thickness.
  • The shoes do not need to be expensive; ordinary tennis shoes work best. Sketchers brand have been very successful with our customers.
