Modular Engineered Carbon Spring System For Kids & Youths

Summer,,Childhood,,Leisure,And,People,Concept,-,Group,Of,Happy

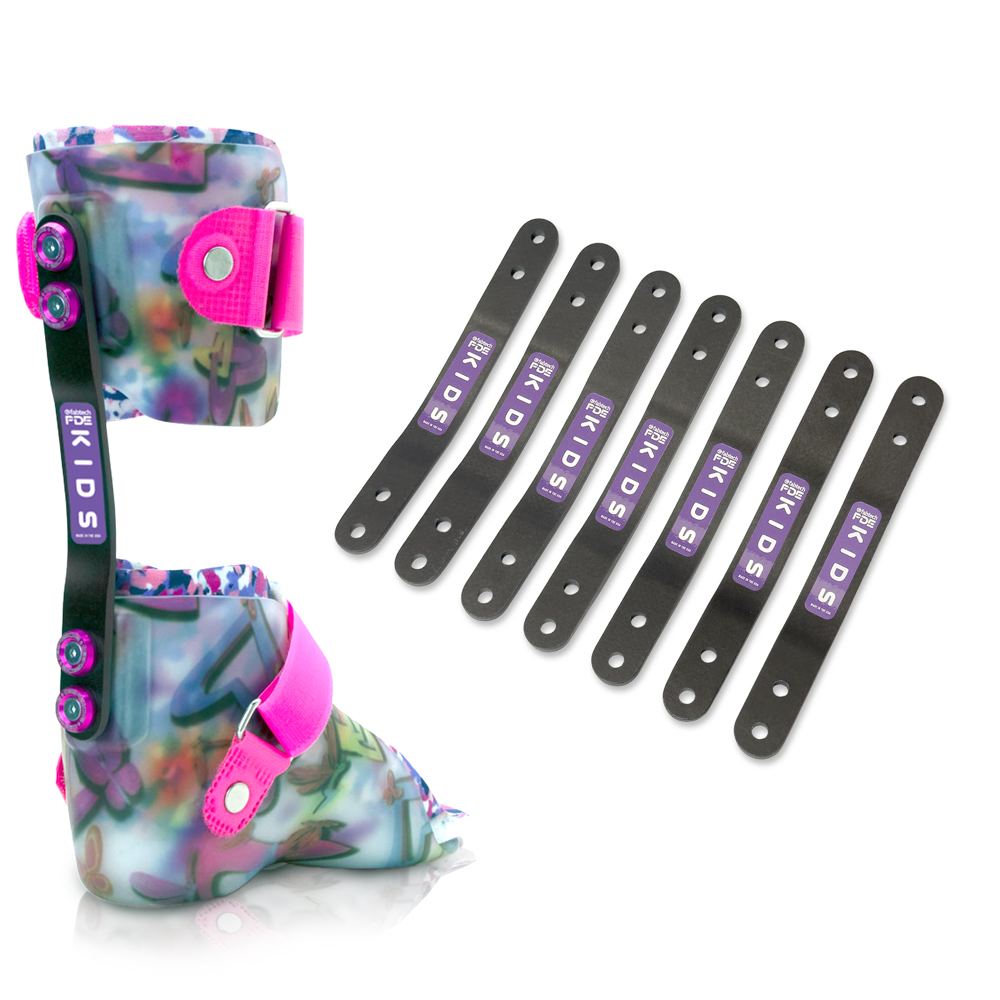

pde-kids-braceexample-3

A MODULAR SYSTEM

The PDE™ Neuromuscular Kids is a modular engineered carbon spring system for composite & thermoplastic AFO brace designs. This simple, align-able system provides the ability to tune functional energy performance as the patient grows and changes. Dynamically adjust external, internal, plantar & dorsiflexion alignments as well as easily change spring stiffness.

PDE™ Kids springs are a perfect solution for:

• Smaller sized patients such as kids & youths.

• Patients with moderate muscle weakness who would benefit from Dorsiflexion & Plantarflexion assistance.

• Nerve/muscle impairment below the knee.

• Deficit of dorsiflexion and/or plantarflexion.

• Common conditions such as: Guillain-Barre Syndrome, Spina Bifida, Spinal Cord Injury, Cerebral Palsy, Spasticity, & Heel Cord Tightness.

• Any patient who would benefit from:

• The tri-planar stability of a custom articulated AFO.

• The reliable control and ground reaction from a custom solid-ankle AFO.

• The energy return of a custom posterior leaf spring AFO.

Features & Benefits

  • 175mm & 225mm Sizes
  • 7 Flex Spring Choices
  • Modular, Reusable Design
  • Low profile
  • Adjustable Alignment
  • Engineered spring system distributes progressive force from heel strike through toe-off.
  • Clinically proven
  • Made in the USA
  • Easily integrated into all brace designs: Composite/ thermoplastic/3D printed, etc

COST-EFFECTIVE. BALANCED. PDE™ Neuromuscular Technology Delivers:

PDE-features-icons-08

Prevent drop-foot

PDE-features-icons-09

Prevent falling

PDE-features-icons-10

Stabilize gait

PDE-features-icons-12

Reduce foot contractures

PDE-features-icons-11

Improve ambulation through energy return

PDE-features-icons-13

Improve quality of life

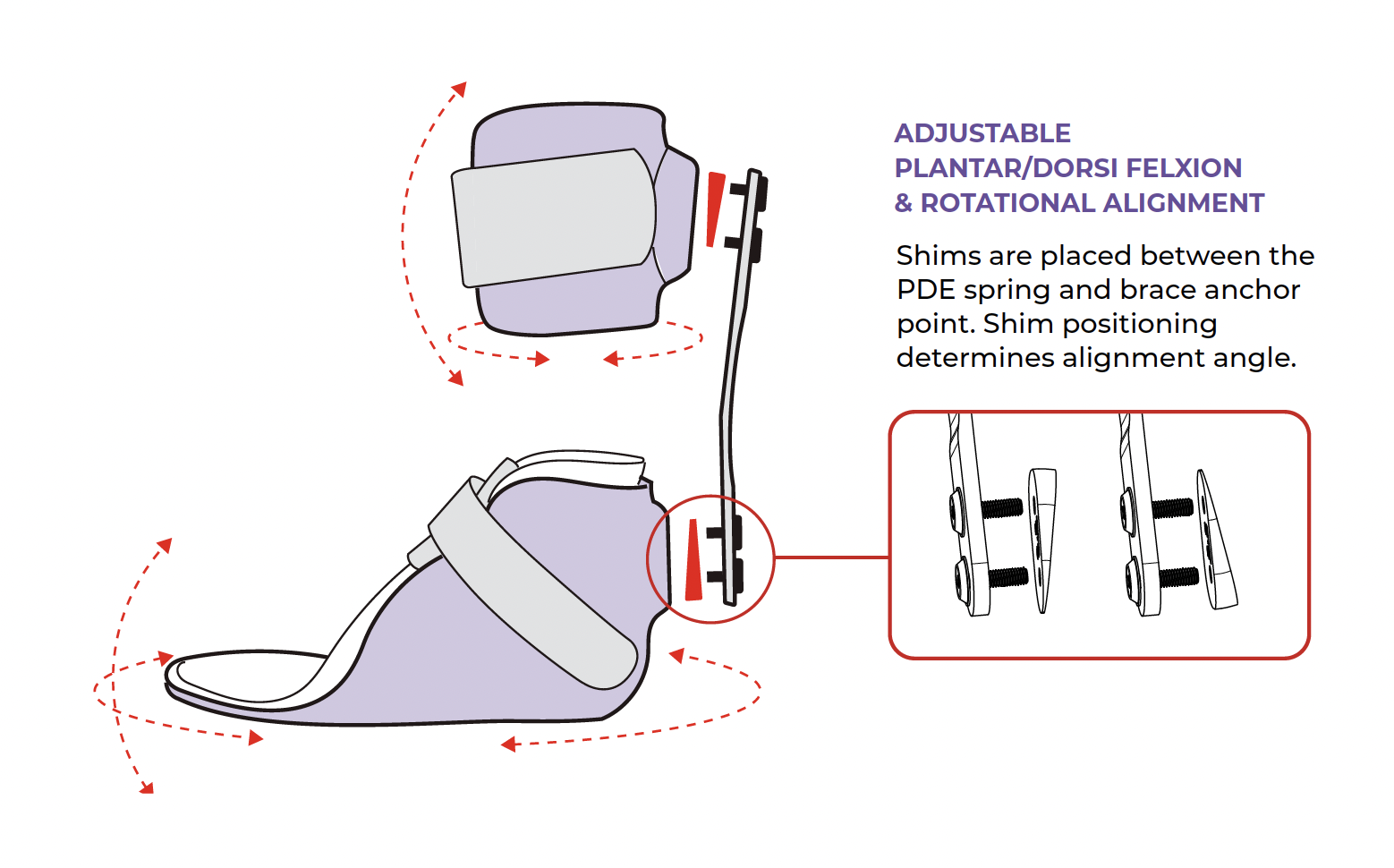

pde-kids-adjustable-alignment-graphic-1

Adjustable Alignment

The PDE modular system allows for fine-tuning the alignment during patient fitting, delivery, and follow-up - To improve the function, performance and comfort of the AFO brace.

Alignment shims can be effortlessly inserted between the PDE spring and the brace to adjust the plantar/dorsi flexion and rotational alignment (in 2.5º increments) of both the upper-cuff & footplate individually.

Shims can be changed and adjusted at any time during the life of the brace, making it easy to adapt to patient changes.

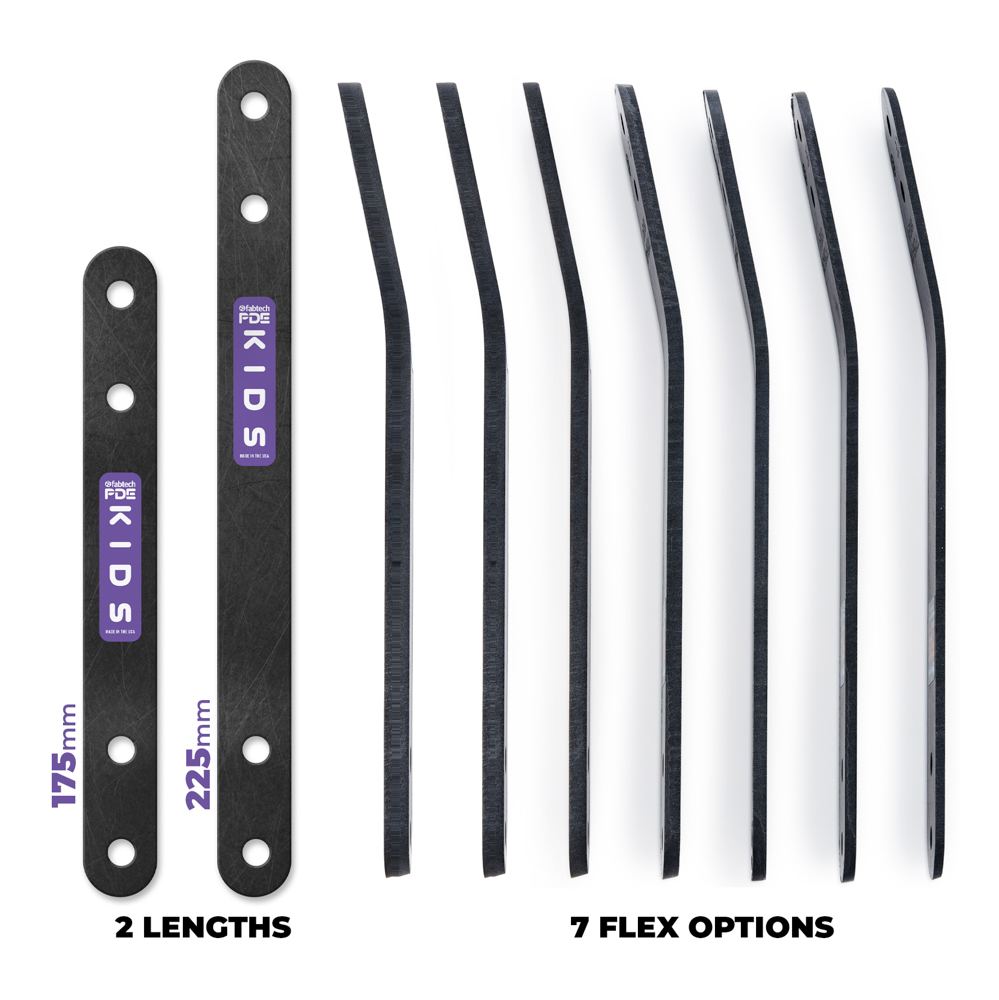

Choosing The Right Spring Spring Length

pde-kides-spring-size-1

Because every patient has unique needs there are no specific weight limitations that aid in spring choice. Choose the category based on your patient assessment. As a general rule you want to use the longest spring system your cuff design or patient height will allow. In an Orthopedic case where you are trying to control and limit motion to control pain, we recommend using a higher category spring in the beginning.

175mm & 225mm length springs

Common lengths to fit a wide variety of patients. Easily adjust and tune to the appropriate spring flex category to provide maximum function and energy return.

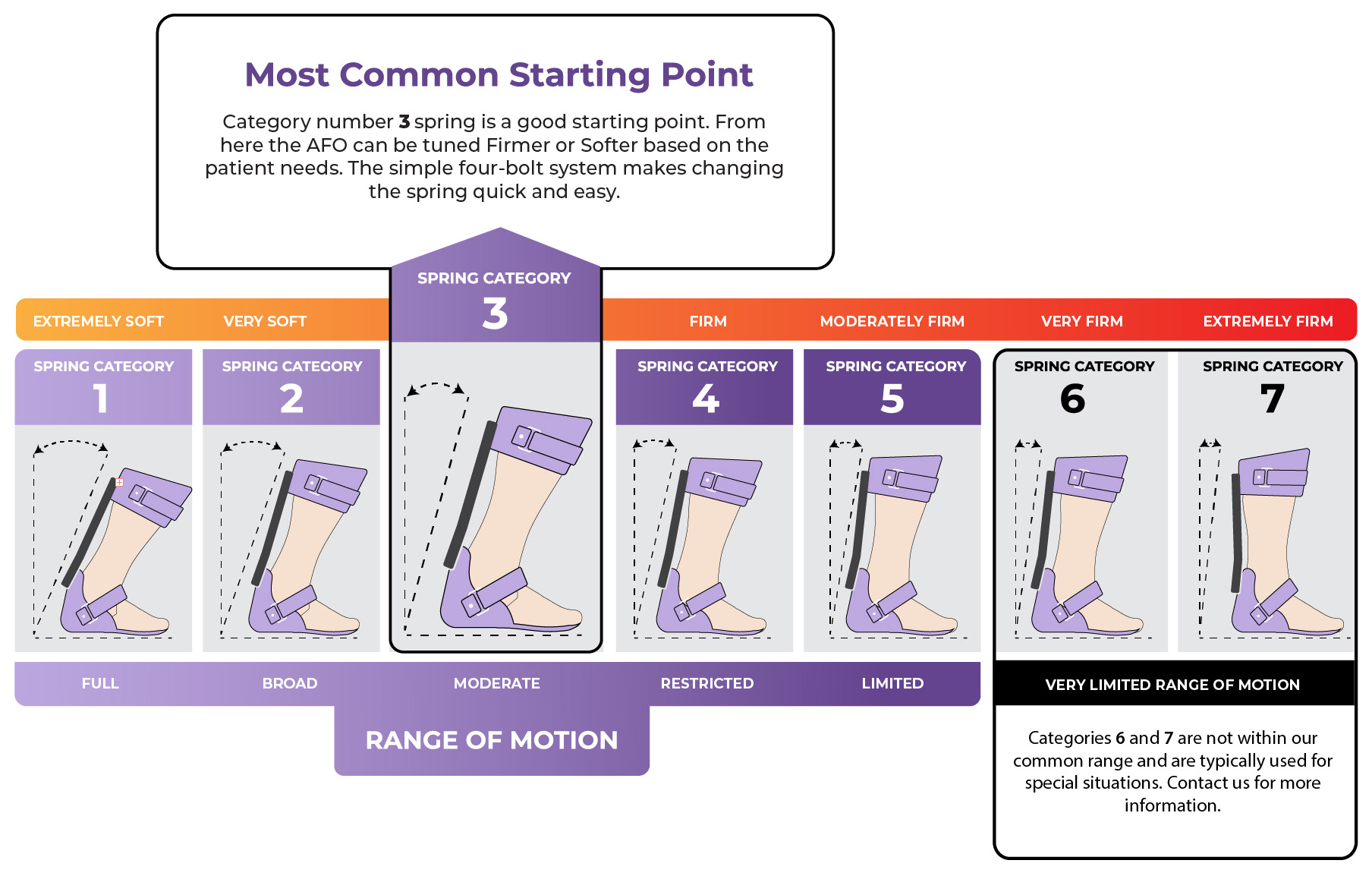

Choosing The Right Spring Spring Firmness (Category 1-7)

PDE-spring-selection-chart-neuromuscular-kids-20240611.1
fabtech-PDE-brace-featured_pediatric-brace-01

BUILD YOUR OWN BRACE We Made it Simple!

Fabricating a brace using PDE spring technology involves industry-standard methods used for composite and thermoplastic brace fabrication. If you are versed in fabricating laminated and plastic prosthetics or orthotic devices, then you can make a PDE Pediatric Neuromuscular Brace.

PDE springs are sold in kit form so you can provide your own unique brace designs with engineered consistent results.

fabtech_kb230215_516

Don’t want to make your own brace?
Our partners will be happy to help.

We have partnered with two Central Fabrication companies who meet our high quality standards. (*We currently only offer central fabrication services for our Reaktiv™ brand braces. Learn more about Reaktiv™.)

Recommendation: PDE Fitting Kit

Get it right. Get the Fit Kit.

  • Diagnose and adjust spring stiffness & alignment during patient fitting and delivery
  • Includes common range of spring categories (stiffness) for increasing or decreasing stiffness and energy return
  • Includes a full set of assembly hardware and components for brace construction
  • Includes shim set for adjusting plantarflexion, dorsiflexion, and rotational alignment
fabtech-PDE-fit-kit_pediatric

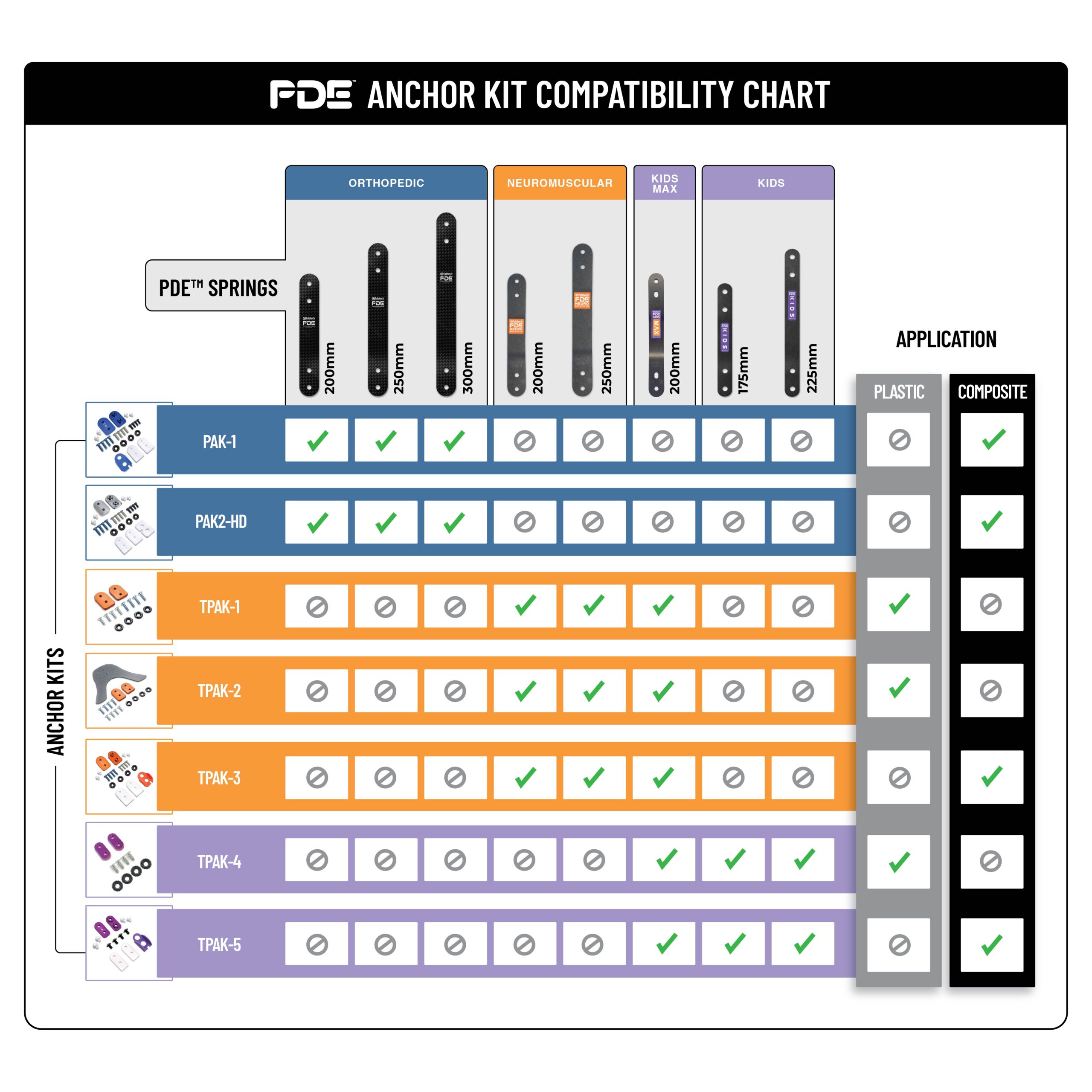

PDE Anchor Kit Compatibility Chart



Using The Right Anchor Kit



Anchor kits are design for specific material applications. We have created a compatability chart so you know exactly which anchor kit to use.

fabtech-warranty-6-months

Fabtech Systems warrants the PDE products to be free of any manufacturing or workmanship defects for Six (6) months from the date of purchase. The warranty does not cover failure caused by erroneous application, custom fabrication done to customer specification, improper storage, or intentional misuse or brace designs outside the original stated design parameters.

Fabtech Systems at its discretion will replace or repair any of its products that do not meet this warranty. The replacement or repair of the defective product is the exclusive remedy; liability does not extend to any other damages, incidental, consequential or otherwise.
